Ashley Machine & Tool Company is a full-service industrial machining company capable of handling even the most intricate machining needs precisely and efficiently. Our machining team is dedicated to completing every project on time and within budget while maintaining the highest levels of quality and professionalism. Our state-of-the-art equipment inventory includes the best and latest in lathing and milling technology, drilling and boring machines, radial drills, and other machining gear.

Numerically Controlled Machines

Machining Centers

  • NC-7 – NC-8: Two Leblond Makino (FNC – 106) Machining centers with 4-axis capability. Axis travel: x = 41 5/16”, y = 23 5/8”; z = 22”; and 8 7/8” (with 4th axis rotary table).
  • NC-12 – VMC-150: Monarch Vertical Machining Center – 4-axis with Tsudakoma rotary table. 30” x 50” table travel. Axis travel: z = 26”.

CNC Lathe

  • (1) Daewoo – Puma 12 (Fanuc 10T-F): 2-axis capability. Axis travel: x = 7.87”; and z = 31.50”. Swing over bed – 22.80”.
  • (1) Daewoo Model 240MS CNC Lathe: 2-axis with live tooling

N.C. Machines

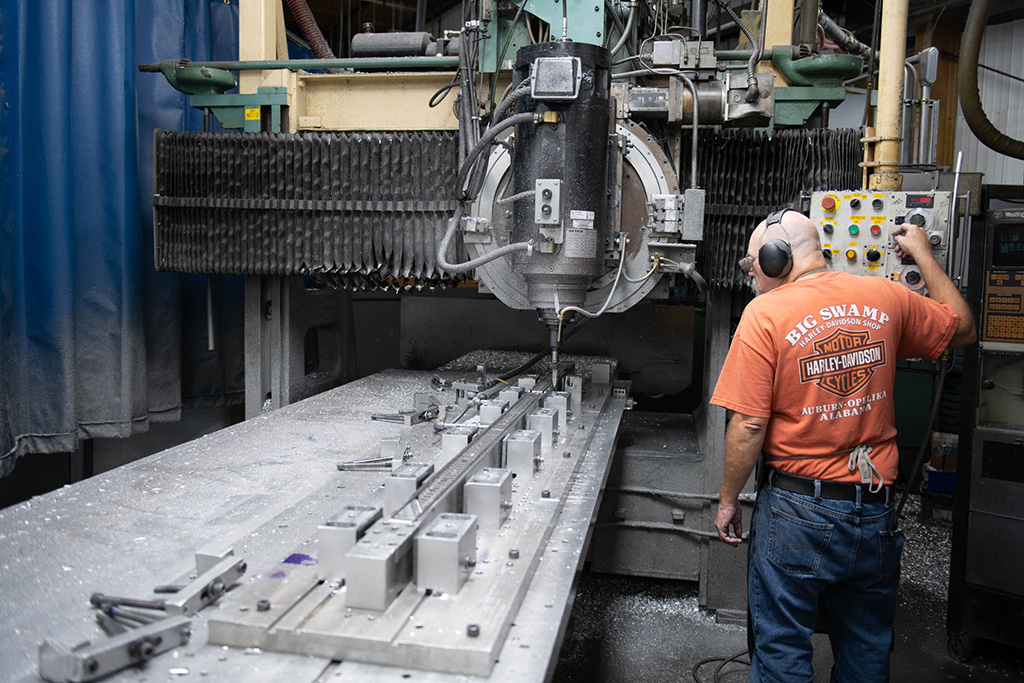

  • NC-2 CNC: Niles Planer Mill. 4-axis serial # 0X061. –A- axis can be rotated +/- 45. Axis travel: x = 12’; y = 4’; and z = 15’.
  • NC-5 CNC: Onsrud Gantry Mill. S/N 8320. 4 axis. –A- axis can be rotated +/- 30. Axis travel: x = 16’5”; y = 4’8”; and z = 14”.
  • NC-9: Gray 2 spindle 5-axis CNC Vertical Mill. –A- axis rotation +/- 20. Axis travel: x = 364”; y = 183”; and z = 12”. Spindle 50 HP 100 to 15000 RPM.
  • NC-10: Cincinnati (CNC) 4-axis Bridge Mill. –A- axis rotation +/- 20. Axis travel: x = 300”; y = 56”; and z = 18”. Spindle 50 HP 100 to 10,000 RPM.
  • NC-11: Wilson Versa-tel (CNC). 4-axis 4-spindle Bridge Mill. –A- axis rotation +/- 16. Axis travel: x = 192”; y = 72”; and z = 24”. Spindle 58 HP 100 to 10,000 RPM.
  • NC-14: G & L Hypro (CNC) Planer Mill with Fanuc 16IMB CNC controller. S/N 7638. 4-axis Bridge Mill. –A- axis rotation +/- 28. Axis travel: x = 299”; y = 104.9”; and z = 17.625”. Machine equipped with 2 milling heads – one vertical, one horizontal. Vertical Spindle is 80 HP, 100 – 10,000 RPM.
  • NC-15: Toyoda 3-axis machining center with 4th axis rotary table. CNC Fanuc control. 360 degree
    A-axis control. Axis Travel: x= 156”, y = 57”, z= 35”. 30HP spindle, 100-10,000 RPMs.
    Fully enclosed machine with chip conveyor and automatic tool changer.
  • NC-16: Fives Cinetic MGP 150. 4 Chuck aluminum profile machine. 5.9 cross x 384” length.
    24K RPM x 12 KW. Siemens CNC control. HSK-50 “24 Tool Changer”. 1200”/ min.

Milling Machines

Bridgeport Milling Machines

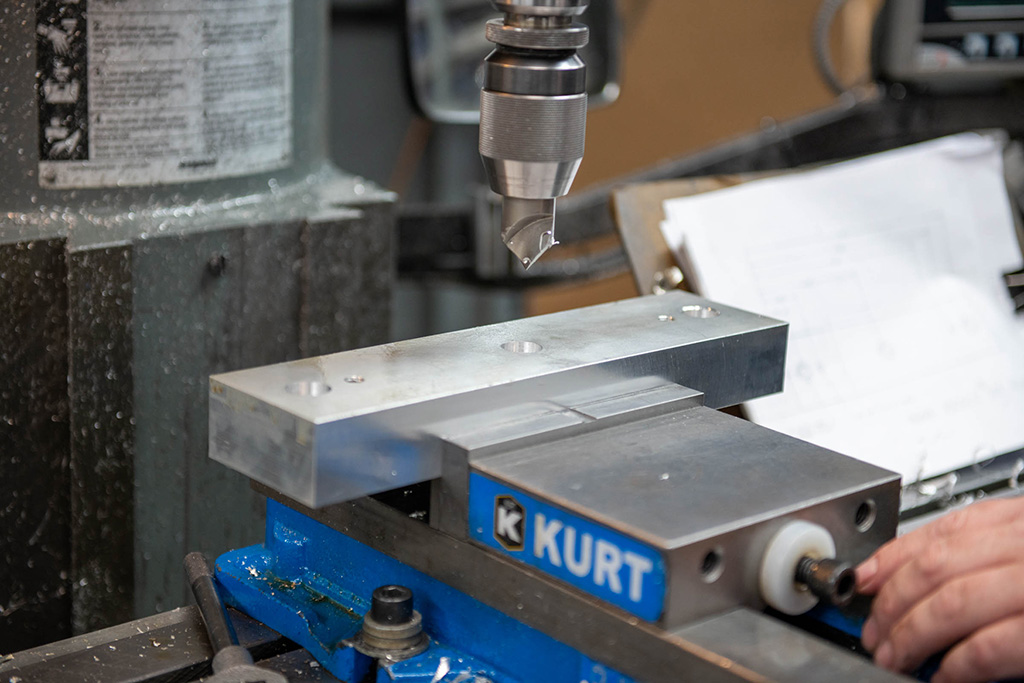

  • Bridgeport Vertical Milling Machine, Serial # 278223: Model “J” Milling Head, 42” Table with power feed and DRO.
  • Bridgeport Vertical Milling Machine, Serial # 278221: Model “J” Milling Head, 42” Table with power feed and DRO.
  • Bridgeport Vertical Milling Machine, Serial # 221960: Model “J” Milling Head, 42” Table with power feed and DRO.
  • Bridgeport Vertical Milling Machine, Serial # 229604: Model “J” Milling Head, 42” Table with power feed and DRO.

Drilling & Boring Machines

Radial Drills

Cincinnati Bickford Radial Drill Press 3’ x 9’ column, Serial # 1R4117 American Radial Drill Press.
Carlton Radial Drill Press – 4FT ARM on 11” Column.

Jig Boring Machines

Cleerman Jib Boring Machine, 24” x 48” table capacity, Serial # CJB – 160.

Cleerman Jib Boring Machine, 16” x 36” table capacity

Turning Machines

Production Lathes

Clausing Colchester Engine Lathe 17” GAP Bed.

Tool Room Lathe

Monarch Lathe, 14” x 5’ centers, Model 12CK, Serial # 22603.

Centering Machines

Sunstrand Centering Machine, 2 spindle, Serial # 56-61.

Honing Machines

  • 1 Sunnen Model MBB – 1660.
  • 1 Sunnen Model CV – 616.
